Alpine UTE-72BT

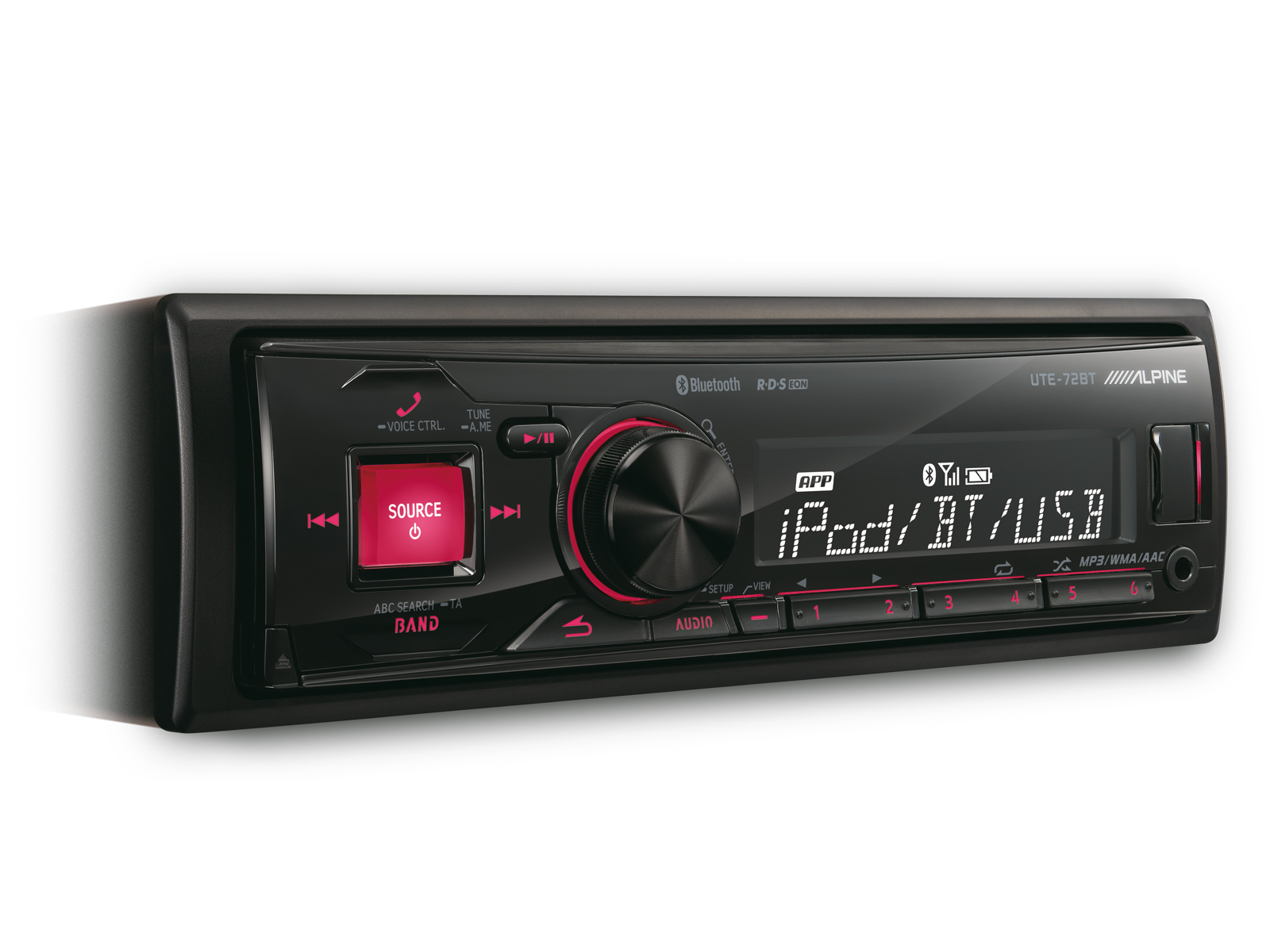

Alpine UTE-72BT - DIGITAL MEDIA RECEIVER WITH BLUETOOTH®

For trusted Alpine sound quality and the convenience of built-in Bluetooth Plus wireless technology, the UTE-72BT DIGITAL MEDIA RECEIVER offers just what you need. Play your iPod® or iPhone® via USB (cable sold separately) and control music playback and search functions right from the Head Unit. Alternatively you can also switch to Direct Control Mode and control playback from the iPod® and iPhone® directly. App Direct mode allows you to enjoy the sound of any iPhone app through your car speakers while you charge your phone – very handy for internet radio or navigation apps. Use the voice control key to activate Siri on your iPhone 4S / iPhone 5 to control the music playback and place calls. This works also for Android phones with voice control function. Sound quality is greatly enhanced by Alpine’s unique MediaXpander technology, especially for compressed media like MP3. The convenient USB port and 3.5mm auxiliary input on the front of the unit allow you to easily hook up USB mass storage devices or an MP3 player. This unit is not equipped with a CD optical drive.



Features
Tuner

    Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
    Memory: Auto Memory
    Seek Mode: Local/DX Selection

RDS

    RDS Functions: TA, TP, PTY, EON, Radio Text

BLUETOOTH®

    Built-in BLUETOOTH® Module
    Hands Free Calling: HFP (Hands Free Profile), HSP (Head Set Profile) Compatible Phones
    Streaming Music: A2DP (Advanced Audio Distribution Profile)
    Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
    BT Plus Advanced BLUETOOTH Technology
    Connection: SSP (Simple Secure Pairing) Supported
    Phone Book: Phone Book Synchronization
    Phone Book Search: 3 Letters Alphabet Search
    Shortcut Dialling: 6 Presets Memory
    Multiple Phone Number Registration: 3 Phone Number Registration Possibility
    Phone Book Label Display: Mobile, Home, Office, Other
    Voice Dial Operation
    Auto Answer
    Call History Display: Dialled Call, Received Call, Missed Call
    Speech Volume Level Adjustment: Adjustable for Outgoing and Incoming Volume
    Hands-Free Phone Sound Setting: 5 Type Selection
    Signal Strength Indicator
    Battery Level Indicator
    Menu Language Selection: English, German, French, Italian, Spanish, Dutch, Russian
    Firmware Updatable
    Microphone: Microphone Included

Made for iPod® / iPhone®

    Compatibility for iPod/iPhone: Made for iPod touch 4th/3rd/2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
    Connection: KCU-445i (sold separately) Required
    Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Auidobook, Genius
    Alphabet Search
    Percentage Search
    App Direct Mode
    Direct Up/Down: Playlist, Artist, Album, Genre, Composer, Episode Up/Down
    M.I.X. (Shuffle) Play: Song, Album, All
    Repeat
    Battery Charging

USB Media Connection

    USB Connection: Front USB Connection
    Music Playback: MP3, WMA, AAC File Playback
    USB Class: Mass Storage Class
    File/Folder Name Search
    Percentage Search
    Folder Up/Down
    M.I.X. Random Play: Folder, All
    Repeat

Sound Tuning

    Bass Engine™
    Subwoofer Level Adjustment
    Subwoofer Phase Select
    Subwoofer System Select: Subwoofer Level Control Management
    High Pass Filter
    Low Pass Filter
    3-band Parametric Equalizer
    Source Tone Memory
    MediaXpander
    Power IC Management System

General

    Power Output: 4 x 50W High Power Amplifier
    Display: 14 Segments White LCD Display
    Control Type: Rotary Encoder Knob
    Illumination Buttons: Red Illuminated Buttons
    High Grade Audiophile Design
    PreOut: 2 PreOuts (2V, Front + Rear/Subwoofer)
    AUX-In: Front AUX Input (3.5mm mini jack)
    Steering Wheel Remote Control Ready
    Remote Control Ready
    Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
    Detachable Face Plate
    Dimmer
    Power Antenna Lead
    Remote Turn-On

Specifications
Max Power Output Ratings

    Max Power Output: 4 x 50W

FM Tuner

    Tuning Range: 87.5 - 108.0 MHz
    Mono Usable Sensitivity: 0.7 μV
    Alternate Channel Selectivity: 80 dB
    Signal-to-Noise Ratio: 65 dB
    Stereo Separation: 35 dB
    Capture Ratio: 2 dB

MW Tuner

    Tuning Range: 531 - 1,602 kHz
    Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB

LW Tuner

    Tuning Range: 153 - 281 kHz
    Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB

USB

    USB Requirements: USB 1.1/2.0
    Max. Power Consumption: 1,000 mA
    USB Class: Mass Storage Class
    File System: FAT 12/16/32
    MP3 Decoding: MPEG Audio Layer-3
    WMA Decoding: Windows Media™ Audio
    AAC Decoding: AAC-LC Format ′′.m4a′′ File
    Number of Channels: 2-Channel (Stereo)
    Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
    Total Harmonic Distortion (at 1kHz): 0.008 %
    Dynamic Range (at 1kHz): 95 dB
    Signal-to-Noise Ratio: 105 dB
    Channel Separation (at 1kHz): 85 dB

BLUETOOTH®

    BLUETOOTH® Version : Bluetooth V3.0
    Output Power: +4 dBm Max. (Power Class 2)
    HFP: Hands Free Profile
    HSP: Head Set Profile
    A2DP: Advanced Audio Distribution Profile
    AVRCP: Audio/Video Remote Control Profile v1.3

Sound Tuning

    Subwoofer Level Adjustment: 0 to 15
    Subwoofer Phase Setting: 0° or 180°
    High Pass Filter: Off, 60/80/120/160 Hz
    Low Pass Filter: Off, 60/80/120/160 Hz
    Bass Level Control Range: -14 to +14 dB
    Bass Center Frequency: 60/80/100/120 Hz
    Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
    Mid Level Control Range: -14 to +14 dB
    Mid Center Frequency: 500/1k/1.5k/2k Hz
    Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
    Treble Level Control Range: -14 to +14 dB
    Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
    Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)

General

    Power Requirement: 14.4 V.DC (11-16V allowable)
    Pre Output Voltage (Before Clipping): 2V / 10k ohms
    Aux In: 1.4V / 10k ohms
    Maximum Mounting Angle: 35°
    Weight: 1.5 kg

Dimensions

    Din Size: 1 DIN
    Chassis Size (W x H x D) mm: 178 x 50 x 161 mm
    Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
