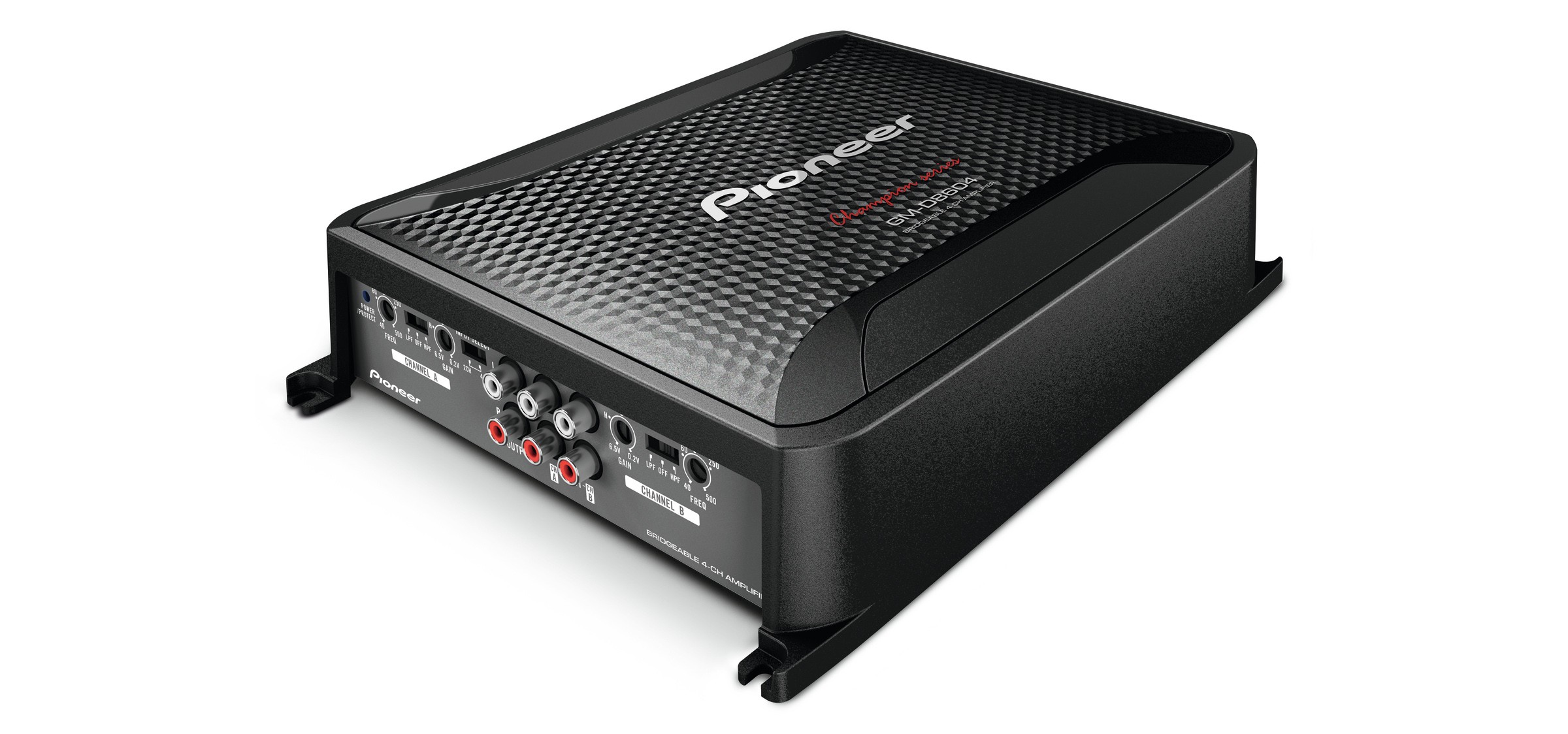

Pioneer GM-D8604

Specifications

Main Features
Maximum Output Power 4 x 200 W (4Ω)
4 x 300 W (2Ω)
2 x 600 W (4Ω bridge)
CEA 2006 Power (THD + N = 1%) 4 x 100 W (20 kHz - 20 kHz / 4Ω)
2 x 300 W (1 kHz / 4Ω bridge)
4 x 150 W (1 kHz / 2Ω)
75 dBA (ref: 1 W into 4Ω)
Continuous power output (RMS) 4 x 100 W (20 Hz - 20 kHz)
4 x 150 W (1 kHz / 2Ω)
4 x 125 W (1 kHz / 1Ω)
2 x 300 W (1 kHz / 4Ω bridge
2 x 250 W (1 kHz / 2Ω bridge)
Frequency response 10 - 50000  Hz
Distortion < 0.05  %
S/N ratio > 95  dB
LPF 40 - 500 Hz (-12 dB/oct)
HPF 40 - 500 Hz (-12 dB/oct)
RCA terminals
Speaker Terminals Block-type
Speaker line input sensor Turn-on sensor
Input level control RCA (0.2V - 6.5V)
SP (0.8V - 16V)
Max. current consumption (A/4Ω) 33.5 A
Chassis size (W x H x D) 265 x 60 x 200 mm
Unit weight 2,6  kg
