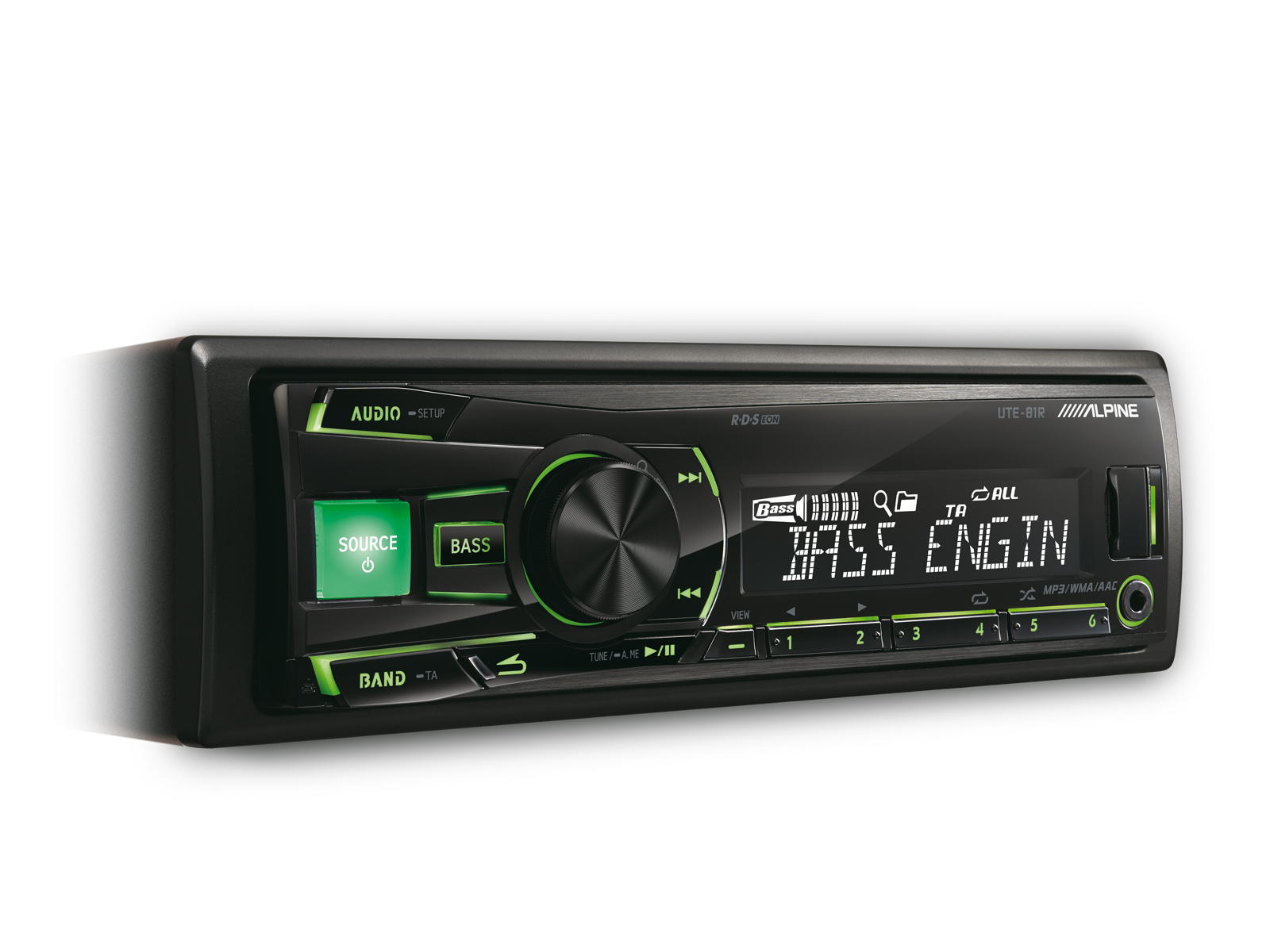

Alpine UTE-81R

Alpine UTE-81R - DIGITAL MEDIA RECEIVER / USB CONTROLLER

Ilma CD-mehhanismita

The UTE-81R is the affordable single-DIN solution that steps up your sound to premium Alpine quality, for hours of music enjoyment.

Simple Plug-in with Front USB Port and Front Aux Input
With a direct USB and auxiliary input available conveniently on the front of the head unit you can connect to additional devices. Connect USB memory devices like thumb-drives and USB hard drives.


Power Supply for Portable HDDs
Because these head units support a 1000mA USB power supply, you can connect and power portable USB hard disks. This makes it possible for you to enjoy your whole music library inside your car.

Fast Charge for your Mobile-phone
The faster your phone charges, the better! The UTE-81R provides a fast-charge function to a maximum of 1000mA, for quick recharging of your phone battery.

Bass Engine SQ
The BASS button next to the central control knob takes you directly to the advanced bass level adjustment function. As you choose one of the six levels, it automatically adjusts frequency cut-off, Q factor and subwoofer level for optimum sound quality and tonal balance.



Features
Tuner
Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
Memory: Auto Memory
Seek Mode: Local/DX Selection

RDS
RDS Functions: AF, TA, TP, PTY, EON, Radio Text

USB Media Connection
USB Connection: Front USB Connection with 1000mA charging support and Phone charging
Music Playback: MP3, WMA, AAC Playback
USB Class: Mass Storage Class
File/Folder Name Search
Percentage Search
Folder Up/Down
M.I.X. Random Play: Files in a folder, All
Repeat

Sound Tuning
BassEngine SQ
Default Equalizer setup
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
3-band Parametric Equalizer
Factory EQ: 10 types
Tone control: Bass/Mid/Treble
Loudness
Source Tone Memory
Power IC Management System

General
Power Output: 4 x 50W High Power Amplifier
Display LCD: 13 Segments White LCD Display 1Line
Control Type: Rotary Encoder Knob
Green Illumination Buttons
AUX-In: Front AUX Input (3.5mm mini jack)
Steering Wheel Remote Control Ready
Remote Control Ready
Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
Detachable Face Plate
Dimmer
Power Antenna Lead Output
Remote Turn-On Output
Face Color: Black
Mute: -20dB Mute (Remote control only)

Specifications
Max Power Output Ratings
Max Power Output: 4 x 50W

FM Tuner
Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 0.7 μV
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB

MW Tuner
Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB

LW Tuner
Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB

USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class
File System: FAT 12/16/32
MP3 Decoding: MPEG-1/2 Audio Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: AAC-LC Format ′′.m4a′′ File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB

Sound Tuning
Bass Level Control Range: -7 to +7 dB
Bass Center Frequency: 60/80/100/120 Hz
Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
Mid Level Control Range: -7 to +7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
Treble Level Control Range:  -7 to +7 dB
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
Loudness: 100 Hz 10 dB
Bass Engine SQ: Level 0 – 6
Source Volume Level: -14 to +14dB

General
Power Requirement: 14.4 V.DC (11-16V allowable)
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 35° from Horizontal
Weight: 0.9 kg

Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 160,5 mm
Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
