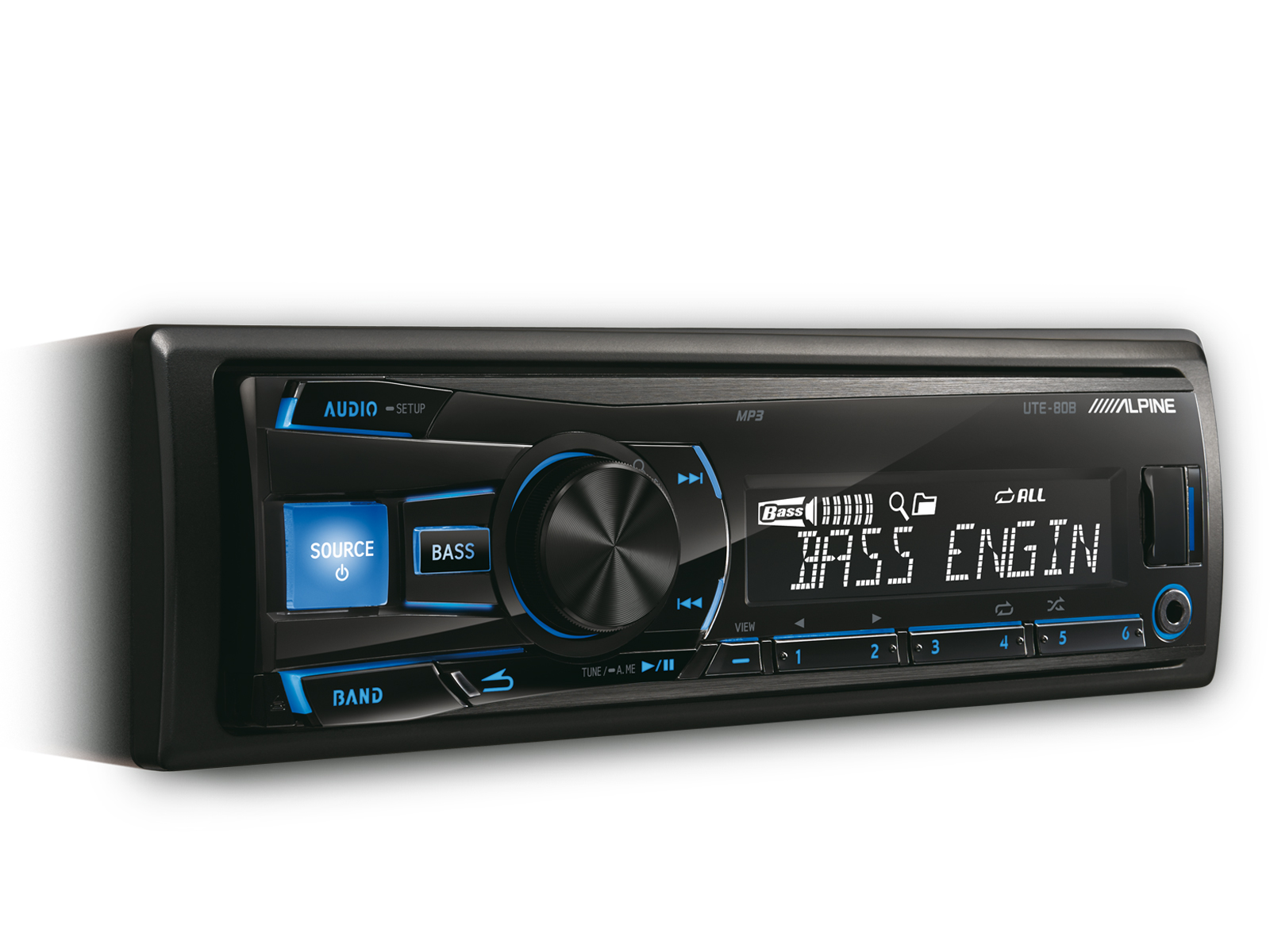

Alpine UTE-80B

Alpine UTE-80B - DIGITAALNE MEEDIA RESSIIVER / USB

UTE-80B on taskukohase hinnaga 1-DIN lahendus mis tõstab heli kõrgemale Alpine tasemele, et nautida tundideviisi muusikat.

Lihtne ühendus esipaneelil USB ja AUX sisenditele.
Esipaneeli asuvate USB ja AUX sisenditesse on väga lihtne ühendada mälupulk või väline kõvaketas.


Power Supply for Portable HDDs
Because these head units support a 1000mA USB power supply, you can connect and power portable USB hard disks. This makes it possible for you to enjoy your whole music library inside your car.

Fast Charge for your Mobile-phone
The faster your phone charges, the better! The unit provides a fast-charge function to a maximum of 1000mA, for quick recharging of your phone battery.

Bass Engine SQ
The BASS button next to the central control knob takes you directly to the advanced bass level adjustment function. As you choose one of the six levels, it automatically adjusts frequency cut-off, Q factor and subwoofer level for optimum sound quality and tonal balance.





Tuner
Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
Memory: Auto Memory
Seek Mode: Local/DX Selection

USB Media Connection
USB Connection: Front USB Connection with 1000mA charging support and Phone charging
Music Playback: MP3, WMA, AAC Playback
USB Class: Mass Storage Class
File/Folder Name Search
Percentage Search
Folder Up/Down
M.I.X. Random Play: Files in a folder, All
Repeat

Sound Tuning
BassEngine SQ
Default Equalizer setup
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
3-band Parametric Equalizer
Factory EQ: 10 types
Tone control: Bass/Mid/Treble
Loudness
Source Tone Memory

General
Power Output: 4 x 50W High Power Amplifier
Display LCD: 13 Segments White LCD Display 1Line
Control Type: Rotary Encoder Knob
Blue Illumination Buttons
AUX-In: Front AUX Input (3.5mm mini jack)
Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
Detachable Face Plate
Detachable DIN Trim Plate
Dimmer
Power Antenna Lead Output
Face Color: Black

Specifications
Max Power Output Ratings
Max Power Output: 4 x 50W

FM Tuner
Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 9.3 dBf (0.8 μV/75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB

MW Tuner
Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 22.5μV/27.0dB

USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class
File System: FAT 12/16/32
MP3 Decoding: MPEG Audio Layer-3
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB

Sound Tuning
Bass Level Control Range: -14 to +14 dB
Bass Center Frequency: 60/80/100/120 Hz
Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
Mid Level Control Range: -14 to +14 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
Treble Level Control Range:  -14 to +14 dB
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
Loudness: 100 Hz 10 dB
Bass Engine SQ: Level 0 – 6

General
Power Requirement: 14.4 V.DC (11-16V allowable)
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 35° from Horizontal
Weight: 0.9 kg

Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 160,5 mm
Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
