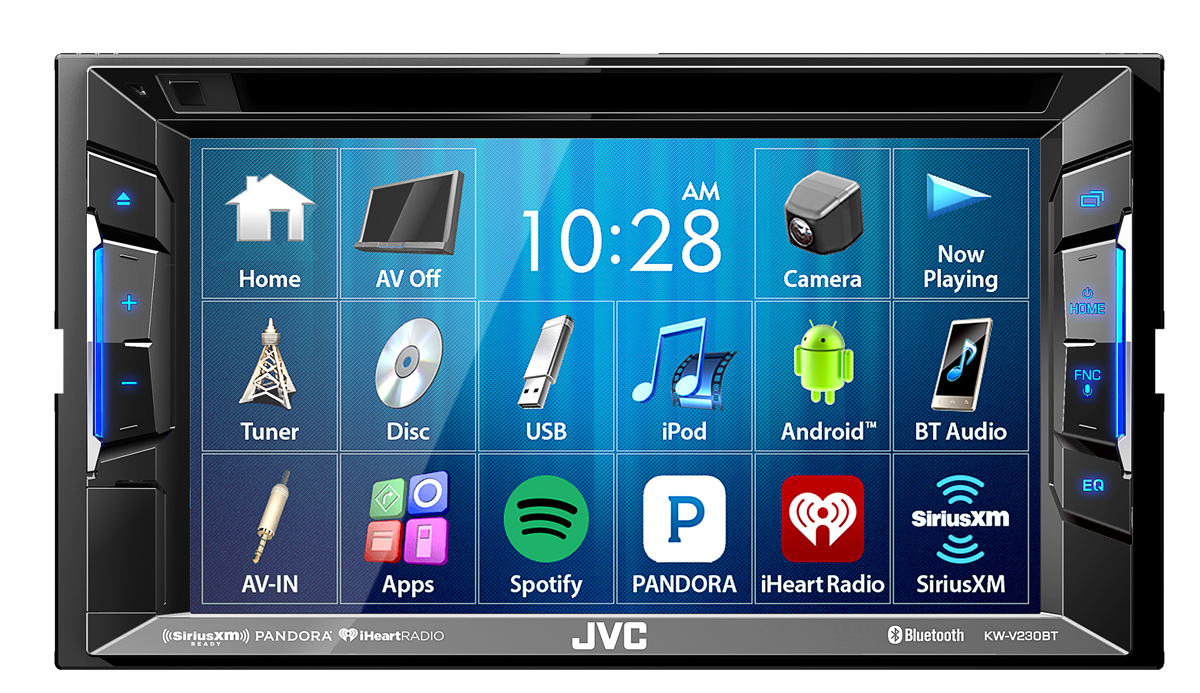

JVC KW-V230BT

JVC KW-V230BT - Multimeedia keskus DVD/CD/USB/Bluetooth

Android™ Music Playback via USB

(AUTO MODE/AUDIO MODE)

Simply connect your Android smartphone or tablet to the receiver via USB and enjoy a totally "plug and play" music playback solution. The Android Open Accessory Protocol (AOA2) is supported so absolutely no preparation or set-up is necessary – just plug it in and it’s ready to play audio files stored on your Android device in what’s called "AUDIO MODE". Or, by installing the free JVC Music Play app* available on Google Play, you’ll be able to access "AUTO MODE" for added functionality including Folder Up & Down, and Search Artist/Album/Song.

 *JVC Music Play app

 For more information, visit www.jvc.net/car/app/jmp/

Pandora / iHeartRadionew / Spotifynew Control (Android/iPhone)

Listen to Pandora, iHeartRadio, and Spotify from your smartphone with smooth control on the headunit via USB or Bluetooth connection for iPhone, and via Bluetooth for Android devices.

KW-V230BT

Monitor

Screen Size     6.2" Wide VGA

Touch Panel     Clear Resistive

Monitor Touch Control   Yes

Customizable GUI        Yes

Key Illumination Color  Blue

Dimmer  Yes

Multilingual Display    Yes[2]

Wallpaper Capture       Yes

Media Playback

MP3 Compatible with Tag CD / DVD / USB

WMA Compatible with Tag CD / DVD / USB

WAV Compatible with Tag CD / DVD / USB

AAC Compatible with Tag CD / DVD / USB

MPEG 1/2 Compatible     CD / DVD / USB

JPEG File Playback      CD / DVD / USB

CD Player

CD-R/RW Compatible      Yes

DVD Player

DVD-R/-RW, +R/+RW Compatible    Yes

Video CD Playback       Yes

Bluetooth Control

Built-in Bluetooth[1]   Yes (Version 3.0, Wired-Mic included)

Hands Free Call Yes (HFP1.6 Wideband Speech)

2 Phones Full-Time Connection   Yes

Audio Streaming & Control (A2DP, AVRCP) Yes

Voice Dialing (voice recognition compatible mobile phone required)      Yes

Phone Book Access Profile (PBAP)        Yes

Alphabetical Search for Phone Book      Yes

Auto Pairing for iPhone/Android Yes

Android Control

Android Music Playback  Yes (USB)[3]

Pandora Control Yes (via Bluetooth(R))

iHeartRadio Control     Yes (via Bluetooth(R))

Spotify Control Yes (via Bluetooth(R))

iPod/iPhone Control

iPod/iPhone Music Playback      Yes (USB)

iPod/iPhone Video File Playback Yes[4]

Pandora Control Yes (via USB)

iHeartRadio Control     Yes (via USB)

Spotify Control Yes (via USB)

USB

USB Port        x1 (USB2.0 Full Speed/High Speed)

Position        Front

USB Power Supply        Yes (1.5A High Current Charging)

Drive Change Mode for Mass Storage Class (selectable from internal/external memory)     Yes

Radio Tuner

SiriusXM Ready  Ready (SXV100/200/300 required)

Radio Broadcast Data System (RBDS)      Yes

Digital Processing Tuner        Yes

Preset Stations 20(FM:15ch, AM:5ch)

Automatic Presetting (Strong Station Sequential Memory) Yes

FM

Frequency Range 87.9 - 107.9MHz

AM

Frequency Range 530 - 1,700kHz

Audio

Maximum Power Output (Front & Rear)     50W x 4

Full Bandwidth Power (Front & Rear)     22W x 4 (Full Bandwidth Power, at less than 1% THD)

MOS-FET Amplifier       Yes

EQ      Yes (13-Band Graphic EQ)

Preset EQ       Yes (8-Preset)

Bass Boost      Yes

High-Pass Filter/Low-Pass Filter        Yes/Yes

3-Way X’over    Yes

K2 Technology   Yes

Space Enhancement       Yes

Sound Response  Yes

Sound Lift      Yes

Volume Link EQ  Yes

Time Alignment  Yes

Inputs and Outputs

AV Input        mini jack

Video Out       RCA

Rear view camera Input  Yes

Line Output Terminals   3 Pairs (Front + Rear + Subwoofer)

Pre-output Level/Impedance      4.0V / 10k ohms

Subwoofer Output with Level/Frequency Control   Yes

General

Back Up Memory  Yes

Face Type

Viewing Angle Adjustment        Yes (0 - 20 degree, default : 0 degree) 4steps

Wireless Remote Control Ready (RM-RK258 required)

Steering Remote Control Ready   Yes

Dimensions (W x H x D)

Installation Size       7-1/16" x 3-15/16" x 6-7/16" (178 x 100 x 162 mm)

Weight  3.53 lbs. (1.6kg)

Unit weight in individual package       4.85 lbs. (2.2kg)
