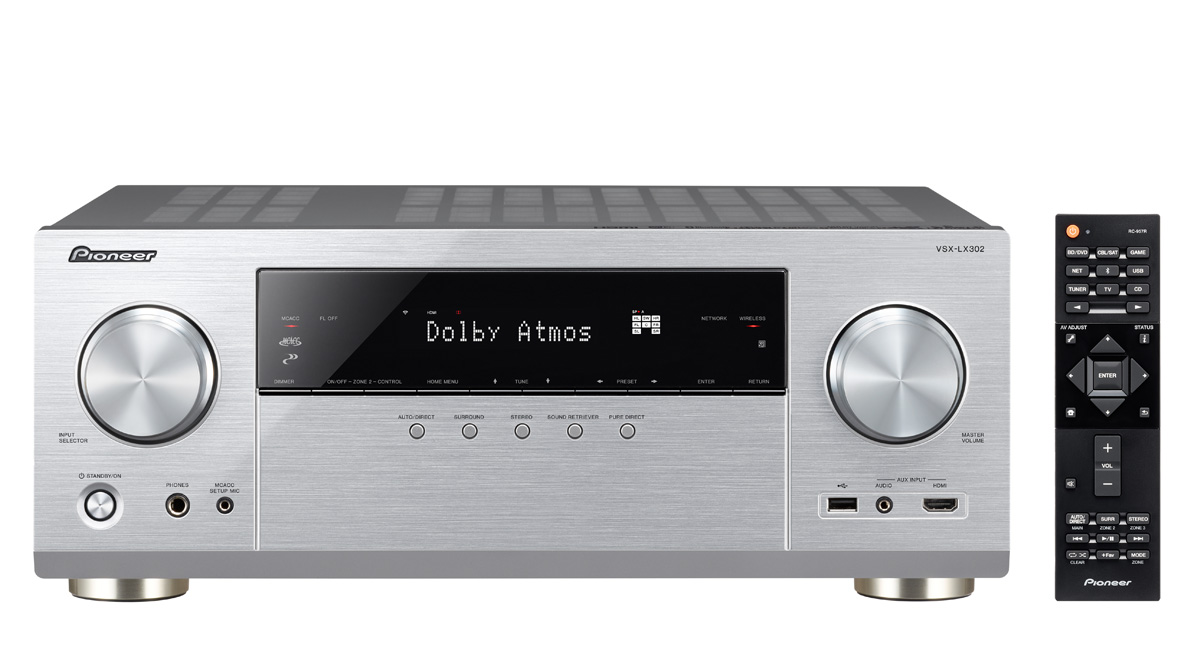

Pioneer VSX-LX302-S

AV Ressiiver Pioneer VSX-LX302

NB! Allahindlus kehtib ainult e-poes.

7.2-channel receiver with 7x170 watts, full-range streaming, Dolby Atmos and dts:X, 4K Ultra HD, video scaler, 4 HDMI ports, HDCP 2.2, high resolution audio playback, dual-band WiFi & Bluetooth


High-tech for film sound and music

Pioneer’s discerning LX model family begins with the VSX-LX302. Its full range of features includes highly precise sound tuning, premium materials and components, and larger performance reserves – 170 watts for each of the seven integrated output stages in the VSX-LX302. The highly efficient Direct Energy architecture keeps electricity consumption low and ensures minimal heating of the receiver, even under high continuous loads. For optimum home cinema performance, the VSX-LX302 has six HDMI inputs with full 4k support. Optimum room adjustment, even for large speaker sets, is accomplished easily and accurately thanks to microphone-assisted MCACC calibration with Phase Control and Subwoofer EQ. This benefits both cinema sound – naturally also in Dolby Atmos – and music that, thanks to comprehensive streaming with the VSX-LX302, is in virtually unlimited supply even without external players: Spotify, Tidal and Deezer are integrated, TuneIn provides an outstanding Internet radio selection, local music server access supports high-resolution audiophile formats and, for music from the smartphone, AirPlay and Bluetooth are available along with integrated Chromecast technology and PlayFi after a firmware update. No matter what your accustomed way of listening to music – with the VSX-LX302, there is no need to change your habits. Only the inspiring new quality may take some getting used to.


Audio Features

    Channels: 7
    Amplification Type: Direct Energy
    170 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
    Dolby Atmos®/Dolby Surround
    DTS:X/DTS Neural:X
    Reflex Optimizer
    Dolby® TrueHD/Dolby Digital Plus
    DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
    DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
    Digital Core Engine with Cirrus Logic (Quad Core) x1
    384 kHz/32-bit DAC (AK4458)
    HDMI Audio Return Channel (ARC)
    MCACC Auto Room Tuning
    • Phase Control
    • Subwoofer EQ
    Advanced Sound Retriever (2ch)
    Advanced Surround Modes
    • Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
    AM/FM Tuner 40 Presets
    Compatible with USB DAB Adapter AS-DB100


Video Features

    Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
    HDR10 and BT.2020 Support
    Dolby Vision Compatible
    Ultra HD Upscaling (1080p 4K)
    3D Ready (Blu-ray Disc™, Broadcast, and Games)
    Deep Colour (36-bit), “x.v.Colour”


Network Features

    Whole Home Audio with FlareConnect
    Chromecast built-in*
    DTS Play-Fi* Ready
    Apple AirPlay Certified
    Spotify®, TIDAL, Deezer, and Pandora Music-Streaming Services Ready
    Internet Radio with TuneIn
    Hi-Res Audio File Playback via USB/Network
    • Up to 192 kHz/24-bit ALAC, AIFF , FL AC, WAV
    • 5.6/2.8 MHz DSD Playback (except via Wireless LAN)
    • Dolby® TrueHD Playback (via USB only)
    Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
    Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)

* Available with future firmware update


Operating Features

    Works with Pioneer Remote App (iOS/Android) for Multi-room Entertainment Control and Network Streaming
    GUI with System/Network Setup Menu
    Auto Power Off in HDMI Standby Through
    Sleep Timer
    User-Friendly Simple Remote Control


Connections
Front Terminals

    HDMI 1 In
    USB 1 In for USB Drive
    MCACC Setup MIC In
    Audio 1 In (Mini Stereo Jack)
    Phones 1 Out

Rear Terminals

    HDMI 6 In (4 Assignable)
    HDMI 2 Out (1 for MAIN, 1 for SUB)
    Ethernet 1 In
    USB 1 In for USB Drive
    AV (Component) 1 In (Assignable)
    AV (Composite) 2 In (Assignable)
    Audio 1 In (Assignable)
    Phono (MM) 1 In
    Digital Coaxial 1 In (Assignable)
    Digital Optical 2 In (Assignable)
    Subwoofer 2 Pre Out
    Zone 2 Pre/Line Out
    Speaker 9 ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2/Bi-AMP, HEIGHT/SP B)
    IR 1 In/1 Out
    12 V Trigger 2 Out/RS-232C
    FM/AM Antenna


Dimensions & Weight

    Dimensions (W x H x D): 435 x 173 x 370.5 mm
    Weight: 10 kg
