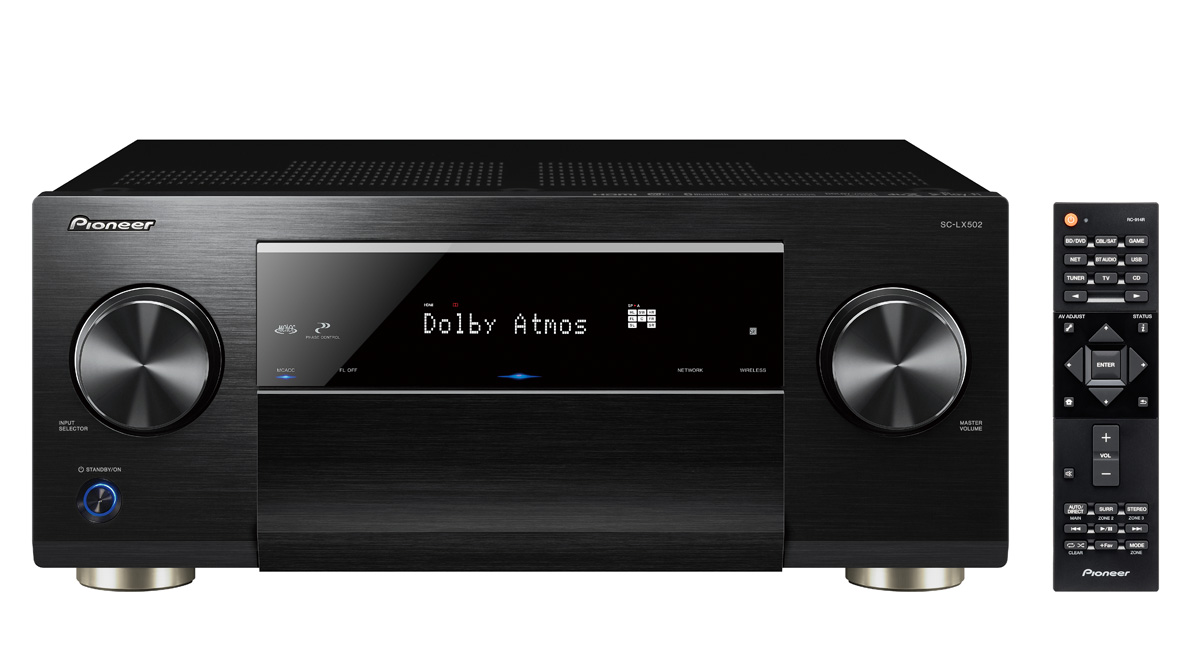

Pioneer SC-LX502-B

AV Ressiiver Pioneer SC-LX502

NB! Allahindlus kehtib ainult e-poes.

7.2-channel, multi-channel receiver with class D amplifier, 4K ultra-HD upscaling/pass-through, Dolby Atmos, DTS:X and full high-resolution streaming


The receiver luxury class starts here

Seven output stage channels with 220 watts each (4 ohm) in Pioneer’s high-end Direct Energy HD architecture lend the SC-LX 502 the dynamic sound authority one expects from a top-class receiver. Heat development and power consumption are unusually low – Direct Energy HD works with minimal losses. With Dolby Atmos and dts:X, the new object-based 3D sound formats are available alongside HD sound in the form of Dolby TrueHD and dts HD Master Audio – thanks to the new eARC also via the audio return channel that was previously excluded from HD audio. For imaging the six HDMI inputs support all UltraHD video standards including the latest extensions HDR10, HLG and Dolby Vision. The range of audio streaming functionality was expanded even further: native support for all leading music services is integrated with Deezer, Spotify and TIDAL, and all connection options to mobile devices are covered thanks to built-in Chromecast technology, Apple AirPlay and Bluetooth. Two manufacturer-independent standards for setting up multi-room networks are available with DTS PlayFi and FlareConnect. High-resolution audiophile downloads on the home NAS run readily with resolutions up to 24-bit/192kHz or quad-rate DSD (11.2MHz). A high-quality D/A converter from AKM guarantees that the high data quality results in premium sound. Pioneer’s automated calibration system MCACC with Reflex Optimizer ensures that all types of playback – from purist stereo to fully-blown Atmos cinema sound – realises its full potential in every living space.


Audio Features

    Channels: 7
    Amplification Type: Class D (Direct Energy HD)
    560 W Multi-ch Simultaneous Drive (8 ohms, 1 kHz, 1.0 % THD)
    220 W/ch (4 ohms, 1 kHz, 1.0 % THD, 1ch Driven, IEC)
    180 W/ch (6 ohms, 1 kHz, 1.0 % THD, 1ch Driven, IEC)
    Dolby Atmos®/Dolby Surround
    DTS:X/DTS Neural:X
    Reflex Optimizer
    Dolby® TrueHD/Dolby Digital Plus
    DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS Express
    DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2ch)
    DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
    Digital Core Engine with Cirrus Logic (Quad Core) x1
    768 kHz/32-bit DAC (AK4458)
    HDMI Audio Return Channel (ARC)
    MCACC Auto Room Tuning
    • Phase Control
    • Subwoofer EQ
    Advanced Sound Retriever (2ch)
    Advanced Surround Modes
    • Classical, Unplugged, Entertainment Show, Drama,
    Advanced Game, Action, Rock/Pop, Sports, Extended Stereo,
    Extended Mono, Front Stage Surround, Auto Surround
    Fan-less Cooler Design
    Anti-Standing Wave Insulator


Video Features

    Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
    High Dynamic Range (Dolby Vision, HDR10, HLG) Signal Passthrough
    Wide Color Gamut (BT.2020) Signal Pass-through
    Ultra HD Upscaling (1080p 4K)
    3D Ready (Blu-ray Disc™, Broadcast, and Games)
    Deep Colour (36-bit), “x.v.Colour”


Network Features

    FlareConnect for Multi-room Audio
    Chromecast built-in
    DTS Play-Fi Ready
    Apple AirPlay Certified
    Spotify®, TIDAL, and Deezer Music-Streaming Services Ready
    Internet Radio with TuneIn
    Hi-Res Audio File Playback via USB/Network
    • Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
    • 11.2 MHz Direct DSD and 5.6/2.8 MHz DSD Playback
    • Dolby® TrueHD Playback (USB only)


Operating Features

    Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
    Built-in Bluetooth® Wireless Technology (Version: 4.1+ LE, Profile: A2DP/AVRCP, Codec: SBC/AAC)
    Pioneer Remote App Ready (iOS/Android™)
    User-Friendly GUI with System/Network Setup Menu
    Auto Power Off in HDMI Standby Through
    AM/FM Tuner 40 Presets
    Sleep Timer
    User-Friendly Simple Remote Control


Connections
Front Terminals

    HDMI 1 In
    USB 1 In for USB Drive
    MCACC Setup MIC In
    Phones 1 Out

Rear Terminals

    HDMI 6 In (4 Assignable)
    HDMI 2 Out (1 for MAIN, 1 for Zone 2/SUB)
    Ethernet 1 In
    AV (Component) 1 In (Assignable)
    AV (Composite) 2 In (Assignable)
    Audio 1 In (Assignable)
    Phono (MM) 1 In
    Digital Coaxial 1 In (Assignable)
    Digital Optical 2 In (Assignable)
    Subwoofer 2 Pre Out
    Zone 2 Pre/Line Out
    Speaker 9 ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2/Bi-AMP, HEIGHT/SP B)
    IR 1 In/1 Out
    12 V Trigger 2 Out/RS-232C
    FM/AM Antenna


Dimensions & Weight

    Dimensions (W x H x D): 435 x 185 x 395 mm
    Weight: 12.1 kg
