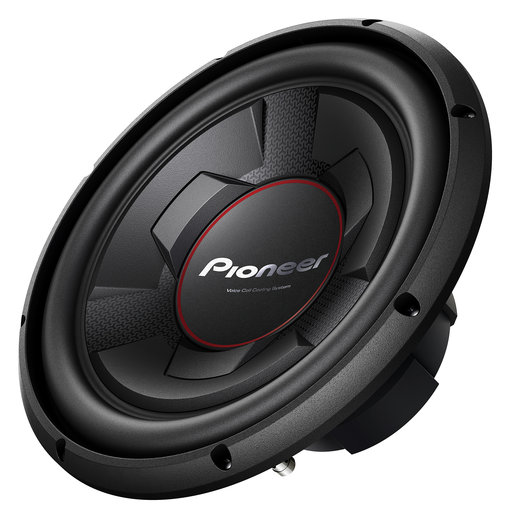

Pioneer TS-W306R

Pioneer TS-W306R 12" (30cm) bassikõlar, 4ohm, 1300W

For extra tight decibels.
Get powerful, punchy bass in your car – from the pedigree of world record-breaking subs. This subwoofer features an IMPP composite seamless cone, which delivers superior durability and rock solid bass, from it’s ultra-rigid, yet lightweight structure. All of these combined gives you low distortion and powerful bass at high sound pressure levels.
Wiring and installation is easy and the subwoofer is suitable for enclosed use. Its cosmetics match with our GM-A amplifier line-up.
This product is also available as a package combined with our GM-A3702 amplifier either with cables (GXT-3706B-SET) or without cables (GXT-3706B).

Full specifications
Main Features
Sensitivity     96 dB
Impedance       4 Ω
Woofer material IMPP
Voice Coil bobbin type  Aluminium
Mounting Depth  135 mm
Cut-out Hole    281 mm
Recom. Enclosure [l]    35,4
Recom. Enclosure [ft3]  1,25
Size    30 cm
Maximum power input     1300
Nominal input power     350 W
Frequency response      20 - 125 Hz

Thiele/Small Parameters
Sd [m2] 5,156E-02
Hvc [In]        1,23
Sd [ft2]        0,55
VC.Diameter [mm]        40
Revc [O]        3,6 Ω
Eff [%] 0,17
Levc [mH] (2000Hz)      1,81 mH
S.P.L. [dB]     96 dB
Xmax [mm]       11,7
R.M.S.Power [W] 350 W
Xmax [in]       0,46
M.M.P. [W]      1300 W
Zmax [O]        46,8 Ω
Sp. Displacement [l]    1,09
Nom. Dia.(In)   30 см
BI [Tm] 10,3 Tm
Sp. Displacement [ft3]  0,038
Qts     0,81
Rms[Ns/m]       1,53 Ns/m
Qms     15,6
Mms [g] 153,9 g
Qes     0,86
Cms [m/N]       0,27 mm/N
F0 (in Cabinet) 48,5 Hz
Fs [Hz] 24,6 Hz
Mg.Wt.[g]       840 g
Q0 (in Cabinet) 1,60
Vas [l] 102,1
Flux Density [Gauss]    619 mT
Vas [ft3]       3,61
Hag [mm]        8
Vd [l]  0,60
Hag [In]        0,31
Vd [ft3]        2,12E-0
Hvc [mm]        31,3
