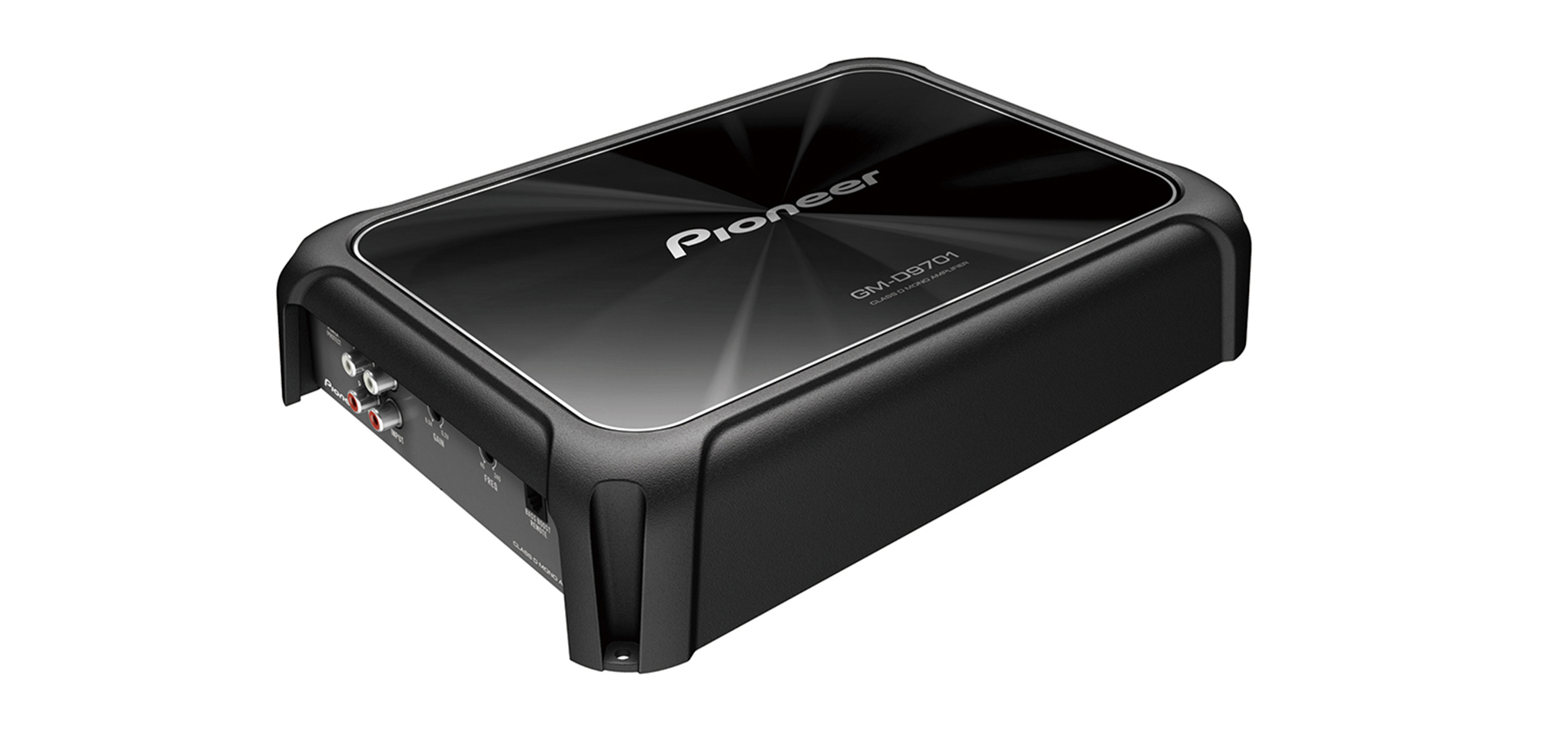

Pioneer GM-D9701

Pioneer GM-D9701 Monovõimendi 1x1000/1600/2400W 4/2/1 ohm

Mono 2400W Class-D Car Amp, with Bass Boost Remote

Compact Power

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

Specifications

Speaker line input sensor
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters

Variable LPF
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility

Multi-block Terminal
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output

D-class
D-classenjoy first class sound and powerful volume on a versatile system at half the size of other units

Full specifications
Main Features
Variable LPF
D-class
Channel(s)      1
RCA terminals   yes
Speaker Terminals       Block-type
LPF     yes
Maximum power
1 x 1000W (4Ω)
1 x 1600W (2Ω)
2400W (1Ω)
Continuous power output
1 x 500W RMS (4Ω)
1 x 800W RMS (2Ω)
1 x 1200W RMS (1Ω)
Frequency response      10 Hz - 240 Hz
Input level control     RCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion      < 0.05 %
S/N ratio       > 100dB
Chassis size (W x H x D)        302 x 60 x 215 mm
Bass Boost      Yes, bass boost remote included
Bass Boost Remote
Crossover Frequency     40 - 500Hz (-12 dB/oct) Hz
Mono
Connections
Multi-block Terminal
