DD Audio SS2000

DD Audio SS2000

Saada kiri müüjale
Saadavus: Toode on laos
329.00 €

Kiirülevaade

DD Audio SS2000 1-kanaliga autovõimendi 1x2000W Description The new SS2000 is the latest half bridge, midpower, high speed, full range, class D amplifier able to fulfill many dif ...
Saadaval olevate toodete tarneaeg on 2-4 tööpäeva pärast kliendi tellimuse tasumist (raha laekumist SV Akustika OÜ pangakontole). Kui tellitud kaup pole pärast tellimuse esitamist saadaval või on ette näha viivitust tarneajas, võtame Teiega ühe tööpäeva jooksul ühendust.

Järelmaksu võimalused

ESTO Järelmaks
Arvuta kuumakse
− +

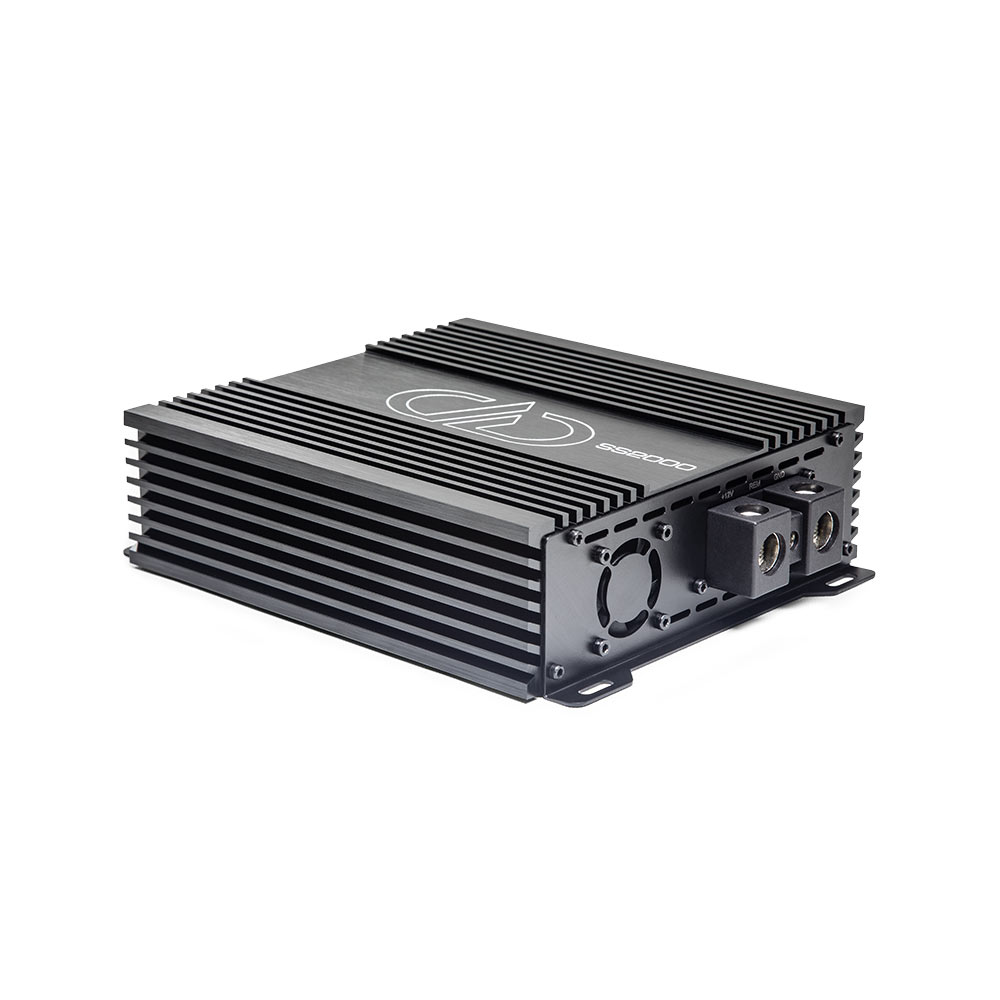

    DD Audio SS2000 1-kanaliga autovõimendi 1x2000W

    Description

    The new SS2000 is the latest half bridge, midpower, high speed, full range, class D amplifier able to fulfill many different system designs. This monoblock comfortably makes in excess of 2000 watts of 20Hz -20kHz power at less than 1% THD+N, at 1 Ohm. The SS2000 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.

    The design starts with our normal DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Power delivery is clean and unstressed while the internal fan cooling with the thick walled DD style aluminum heat sink allows a very small footprint, 7.3” wide x 7.7” deep.

    Specifications

    Operating Voltage: 9 - 16
    Test Voltage: 14.4
    Input Channel(s): 2
    Output Channel(s): 1
    Continuous Wattage @2ohm: 1400
    Continuous Wattage @1ohm: 2000
    Max Current Draw (Amps): 200
    RCA Input Voltage Sensitivity: 6 - 0.25
    High-Level Input Voltage Sensitivity: 20 - 1.1
    RCA Input S/N: 95
    Damping Factor: 100
    THD: 1.0%
    Frequency Response (Hz): 20 - 20k
    Sub-Sonic Filter: 20 - 80hz
    Low-Pass Filter: 80hz - 20khz
    ZVL Input: Yes
    Remote Control: Remote Included in Box
    Power Wire Gauge: 0
    Speaker Wire Gauge: 8
    Dimensions (Inches): 7.7 x 7.3 x 2.4
    Dimensions (MM): 195 x 185 x 60
