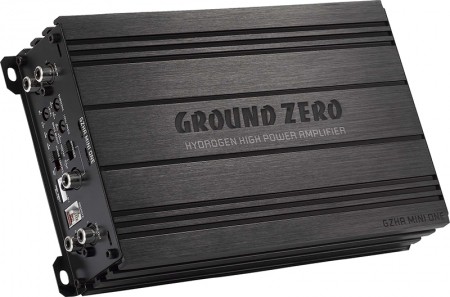

    Ground Zero GZHA mini ONE 1-kanaliga autovõimendi 1x750W

    Description

    GZHA mini-amplifiers are representign latest D-class technology that is also used in OEM-amplifiers. Main difference to traditional D-class is much better sound quality throughout whole bandwith. It is impossible to say in a blind test that are you listening to good AB-class amp or GZHA mini-amplifier.


    Specifications

    High-efficient mono class D amplifier
    • 1 ohm stable
    • Variable high pass filter
    • Variable low pass filter
    • Phase switch (0°/180°)
    • Adjustable bass boost (@ 45 Hz)
    • Stereo RCA input and output
    • High-level input with auto-on function
    • Link mode (with 2 units)
    • Adjustable input sensitivity
    • Turn-on delay
    • Thermal protection circuit
    • Short circuit protection
    • Overload protection circuit
    • Owner’s manual enclosed
    • Wired bass level remote control
    (GZTA Bassremote) included

    Amplifier type Mono class D
    RMS Power @ 4 Ω CEA Standard CEA-2006-A 220 W (1% THD+N)
    RMS Power @ 2 Ω CEA Standard CEA-2006-A 390 W (1% THD+N)
    RMS Power @ 1 Ω CEA Standard CEA-2006-A 630 W (1% THD+N)
    750 W (10% THD+N)
    RMS Power @ 2 Ω in linked mode (of two amplifiers)
    CEA Standard CEA-2006-A
    1260 W (1% THD+N)
    1500 W (10% THD+N)
    Damping factor 100
    Low pass filter 30 Hz – 250 Hz (12 dB/Oct)
    High pass filter (Subsonic) 10 Hz – 50 Hz (12 dB/Oct)
    Band pass filter 10 Hz – 250 Hz (12 dB/Oct)
    Bass Boost 0 ~ +12 dB (@ 45 Hz)
    Frequency response 10 Hz – 250 Hz (± 1 dB)
    Input sensitivity 300 mV – 6 V (± 5%)
    Bass remote 
    Fuse(s) 2x 30A
    Dimensions w x h x l (mm) 135 x 52 x 210
    Dimensions w x h x l (inch) 5.32 x 2.05 x 8.27.
