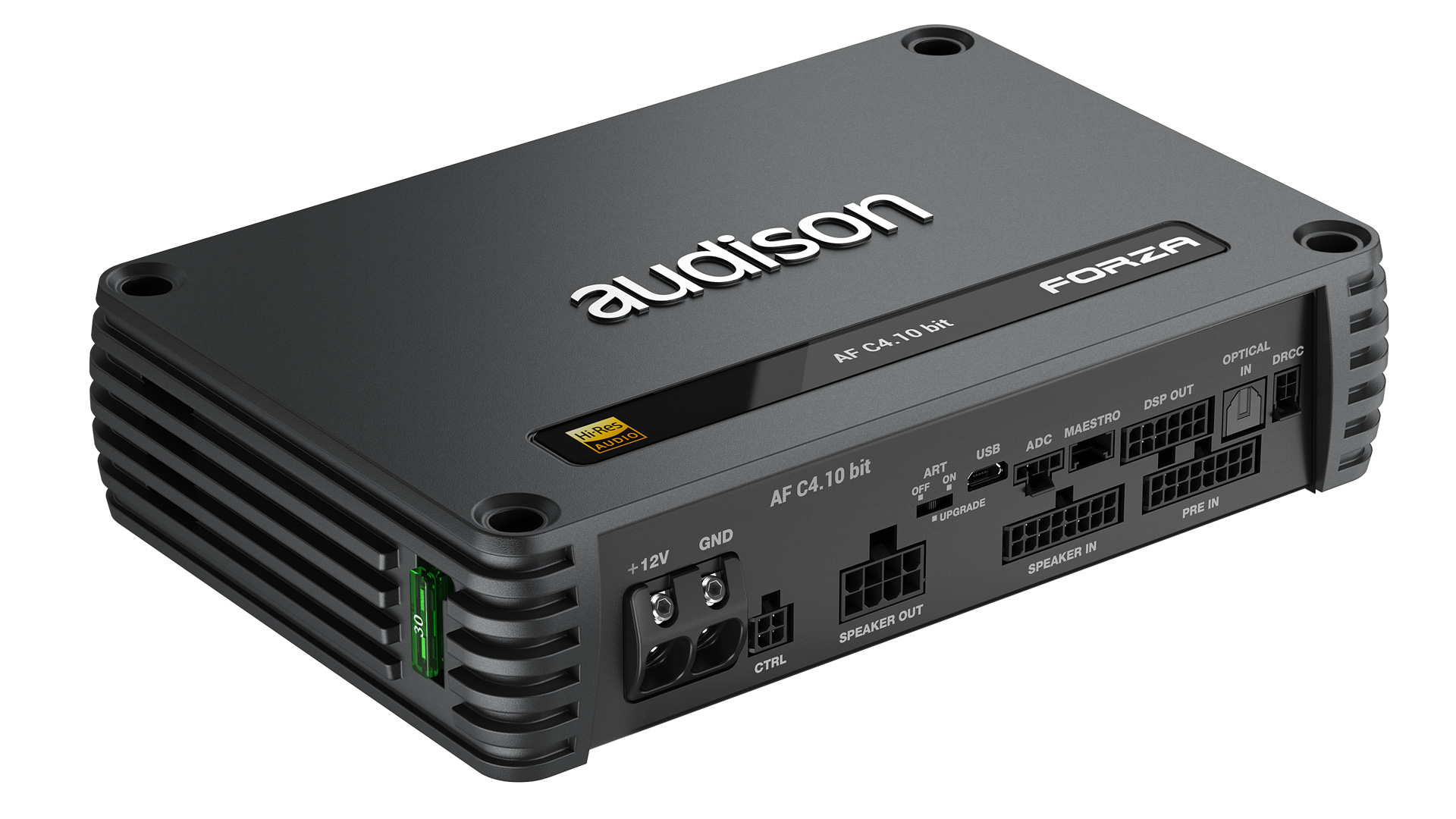

Audison AF-C4D

Audison AF-C4D 4-kanaliga võimendi

Audison AF-C4D klass D 4 Channel 90W X 4 @ 4 Oomi autovõimendi

    11 ÷ 15 VDC / 2 x 35 A
    6.5 ÷ 17.5 VDC
    14.4 VDC : 65 A
    4 ÷15 VDC (1 mA)
    Remote OUT: 6.5 ÷15 VDC (150 mA)
    ART
    1.5 VDC
    RMS 14.4 VDC, 1% THD,4Ω: 81%
    THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.03%
    1 kHz , 4Ω, 2 VRMS: 95
    Bandwidth -3 dB: 10 Hz ÷ 42 kHz
    S/N Master sisend: 98 dBA
    S/N Optiline sisend: 105 dBA
    Miinimum takistus: 8Ch: 2Ω
    4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
    RMS 14.4 VDC, 1% THD:4 Ch @ 4Ω: 90 W x 4
    4 Ch @ 2Ω: 150 W x 4
    2 Ch (sillatuna 1/2; 3/4) @ 4Ω: 300 W x 2
    Väljundvõimsus 4Ω, 1% THD+N, 14.4 V: 90 W x 4
    SN: 80 dB
    Pre-In (6 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
    Kõlar-sisend (6 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
    Digital sisend: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
    DSP Preout (6 Ch): 5V RMS
    Analog Devices ADAU1467 automotive qualified audio processor.
    Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
    Filter: Full / High-Pass / Low-Pass / Band-Pass
    Filter mode and slope: Linkwitz-Riley @ 12/24/36/48 dB/Oct.
    Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
    Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
    Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
    QLP @ 6 dB/Oct.
    Crossover sagedus: 20 Hz ÷ 20 kHz
    Phase: 0° / 180°, All-Pass filters
    Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
    Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
    Input and Output Real-Time Audio Monitor: RTA
    Audison DRCC port: DRCC sisend
    Micro USB 1.1 / 2.0 / 3.0
    Software/ PC requirements: Windows 10, Windows 11
    Töötemperatuuri: 0 °C to 55 °C
    Mõõdud: 200 x 47 x 134 (mm)
